sheet for heat press machines, hydraulic cylinder for hydraulic press machine

FOB Reference Price:Get Latest Price
$15,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Nominal Force (kN):
1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service, Overseas third-party support available
Place of Origin:
Jiangsu, China
Brand Name:
KLT or OEM
Condition:
New
Dimension(L*W*H):
2076*1200*3300
Certification:
CE/ISO
Voltage:
220V/380V
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Motor Power (kw):
7500 kw
Key Selling Points:
High Productivity
Slide Stroke (mm):
500
Weight (T):
12 T
Power(W):
7.5 KW
Weight:
4000 KG
Color:
blue
Nominal force:
1000 KN
Pressure:
Hydraulic
Liftout force:
200KN
Liftout stroke:
200 mm
Brand:
KLT
CNC or Not:
CNC
Power Source:
Hydraulic
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
steel tray case for sheet for heat press machines, hydraulic cylinder for hydraulic press machine
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated

Application

Y32 Series teflon sheet for heat press machines is a kind of multifunctional machine which has high speed. It is suitable for the press fitting and stretch forming of metal and plastic products as well as the movements of coining and overprinting. At the same time, it mainly applies to the fields of machine tool, engineering machinery, bearings, washing machine, automobile parts, motor components and powder metallurgy. Also, it is suitable for the molding of plastic products, such as DMC and BMC.

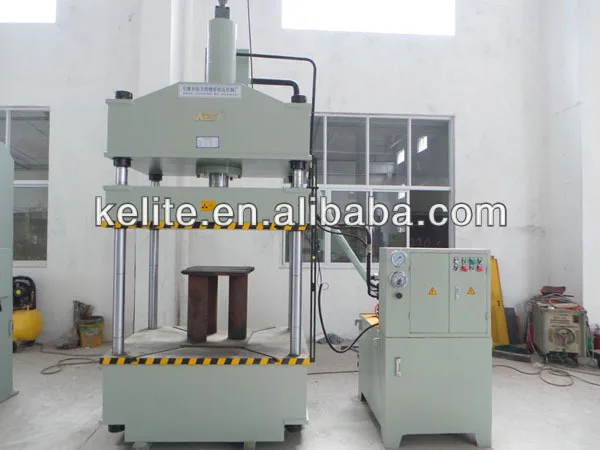

Picture of press machine



Y32-100T (1) 600



Features

1. The steel body is entirely welded with steel plates, and treated to relive stress by tempering

2. Cartridge valve integral unit equipment for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.

3. Independent electrical control, reliable, audio-visual and convenient for maintenance.

4. Centralized button control system, with adjustment, hand and semi-auto operation modes at operator’s choice.

5. Fixed stroke forming process of fixed pressure forming process selected through control panel, with pressure hold and time delay functions.

6. The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.



Technical Specifications









Item

Unit

100T

Nominal force

KN

1000

Ejecting force

KN

200

Max. pressure of liquid

MPa

26.2

Stroke of slider

mm

500

Max. opening height

mm

900

Table size

F. B.

mm

580

L. R.

mm

710

Ejecting stroke

mm

200

Speed of slider

Idle speed

mm/s

100

Working speed

mm/s

8-15

Return speed

mm/s

60

Overall dimension

L. R.

mm

2076

F. B.

mm

1200

Above floor

mm

3300

Motor power

KW

7.5

Weight

T

4



























































Components and Pictures:

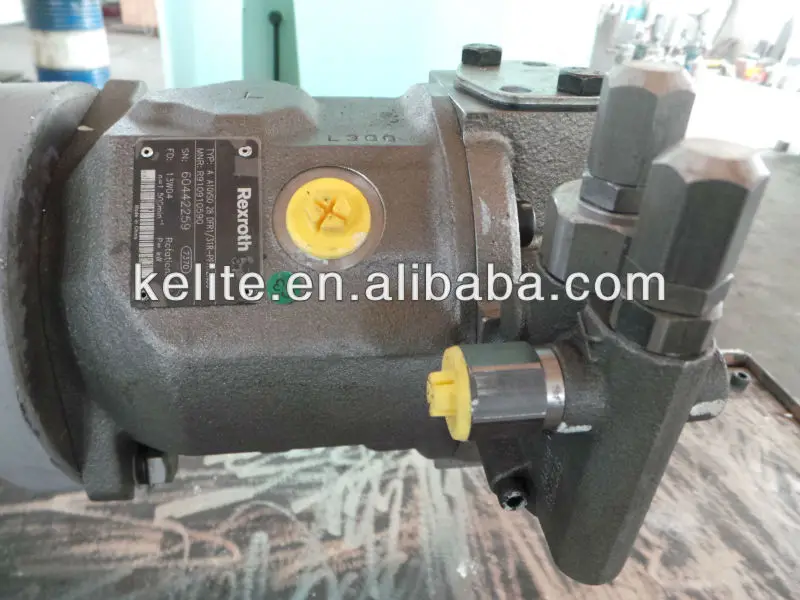

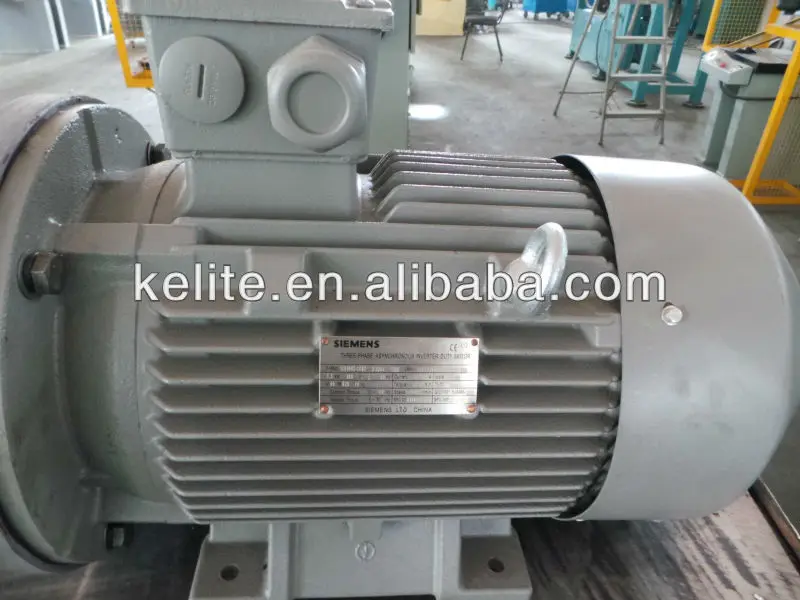

1.Hydraulic pump, Siemens, Germany brand

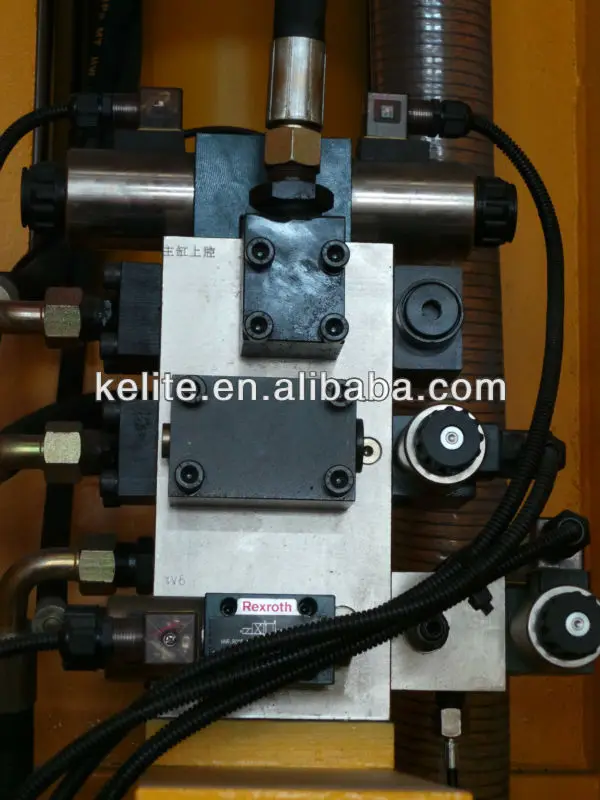

2.Hydraulic valve, Rexthor, Germany brand

3.Seal ring, NOK, Japan brand

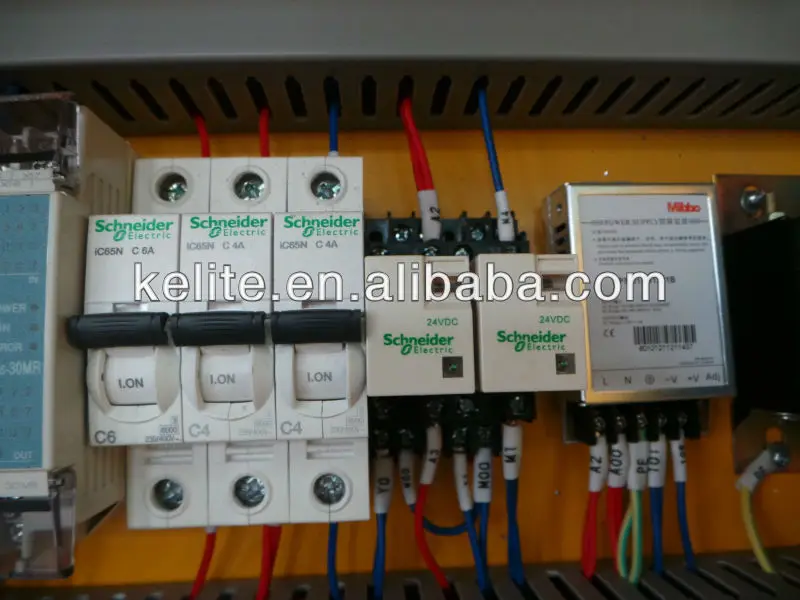

4.Electrical equipment, Schneider,France brand

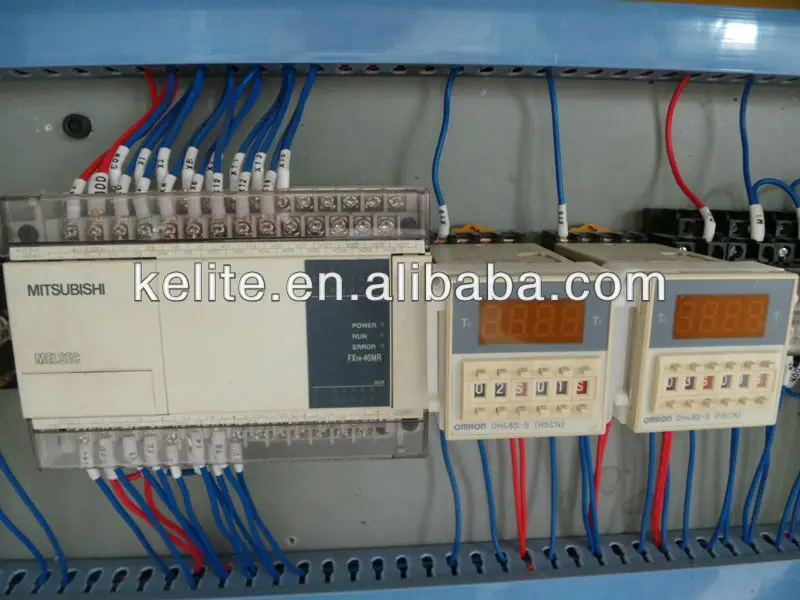

5.PLC, Mitsubishi,Japan brand

6.TPC, Veinview, China

7.Display sensor, NOVO, Germany brand

8.Security sensor, Sensorc, China



Pictures of Key components






Y32 (15).jpg








.JPG



.JPG
