500T frp hydraulic press 4 column for composite

FOB Reference Price:Get Latest Price
$53,030.00 - $90,900.00 / Set | 1 Set/Sets 500T frp hydraulic press 4 column for composite (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years after delivery
Place of Origin:
Jiangsu, China
Brand Name:
KLT
Model Number:
Y71-500T
Condition:
New
Dimension(L*W*H):
4100mm*2420mm*5348mm
Certification:
CE/ISO
Voltage:
220V/380V(According to your local voltage)
Weight:
15T
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
37KW
Color:
Customized
Product name:
500T frp hydraulic press 4 column for composite
Power Source:
Hydraulic
CNC or Not:
CNC
Supply Ability
Supply Ability:
50 Set/Sets per Month 500T frp hydraulic press 4 column for composite
Packaging & Delivery
Packaging Details
Steel Tray Frame for 500T frp hydraulic press 4 column for composite
Port
Shanghai
Lead Time :
Shipped in 60 days after payment



Applications

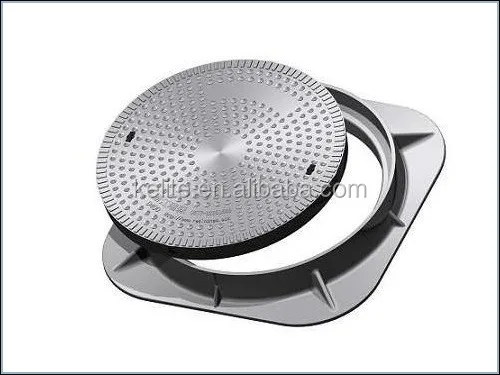

1. Y71 500T frp hydraulic press 4 column for composite is suitable for the molding of plastic products, such as DMC and BMC electrical cabinet, fixed seat, etc.

2. Proportional adjustment. The machine can realize proportional adjustment, operator can change machine's speed and pressure on touch screen.

Description

1.500T frp hydraulic press 4 column for composite has its own independent dynamic mechanism and electric system and uses pushbuttons controlling system.

2. Three operation modes of adjustment, manual and semi-auto operations can be realized.

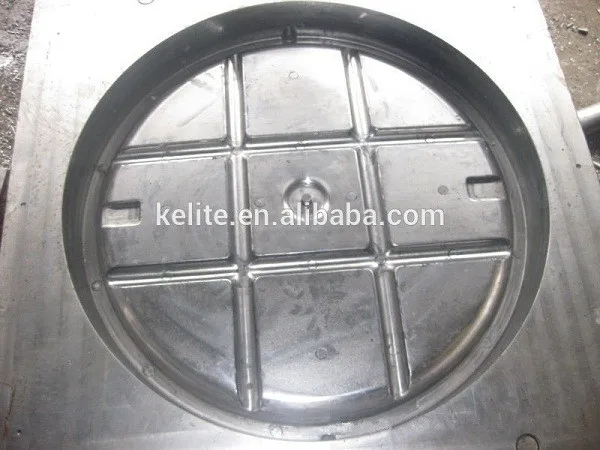

3. 500T frp hydraulic press 4 column for composite employs four-column guiding device and ejecting device, which can automatically eject workpieces with accurate guiding and fast speed. The drawing device can be added to this equipment in order to change moulds easily.

Specifications

Item

Unit

500T

Nominal force

KN

5000

Ejecting force

KN

1000

Max. pressure of liquid

MPa

25

Stroke of slider

mm

900

Max. opening height

mm

1500

Table size

F. B.

mm

1400

L. R.

mm

1400

Ejecting stroke

mm

300

Speed of slider

Idle speed

mm/s

>100

Working speed

mm/s

8-15

Return speed

mm/s

80

Overall dimension

L. R.

mm

4100

F. B.

mm

2420

Above floor

mm

5348

Motor power

KW

37

Weight

T

27



























































Detailed Images



Y32-500T (29)

1045027056_984818237

Main Oil Cylinder

Y32-500T (19)

Safety light curtains to ensure the operator's safety

Y32-500T (9)

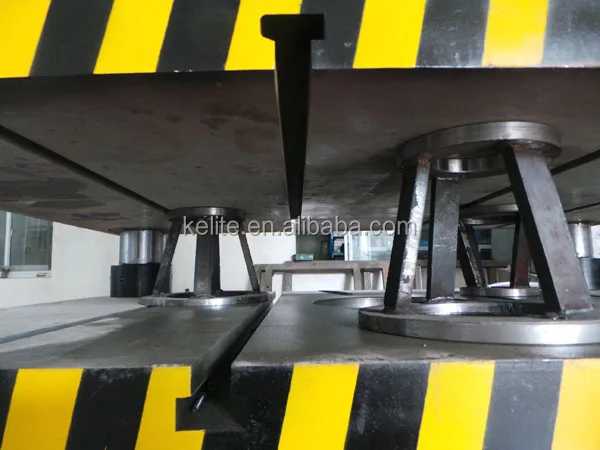

T-slot

Y32-400T (9)

Electrical Cabinet with PLC to realize CNC control

Y32-500T (22)

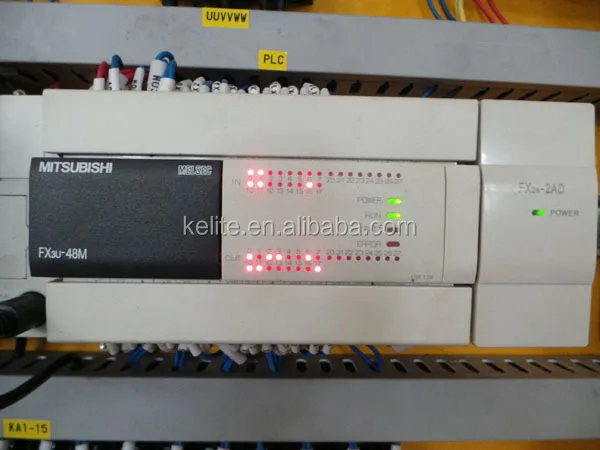

Mitsubishi PLC, Japan Brand

Y32-200T (18)

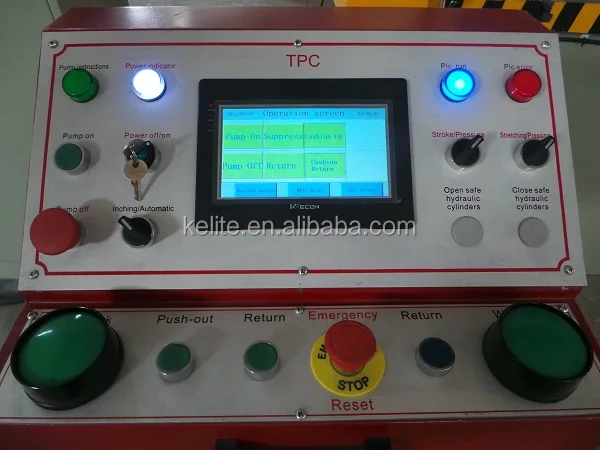

Mobile Operating Box, easy to control

Y32-400T (24)TPC(2)

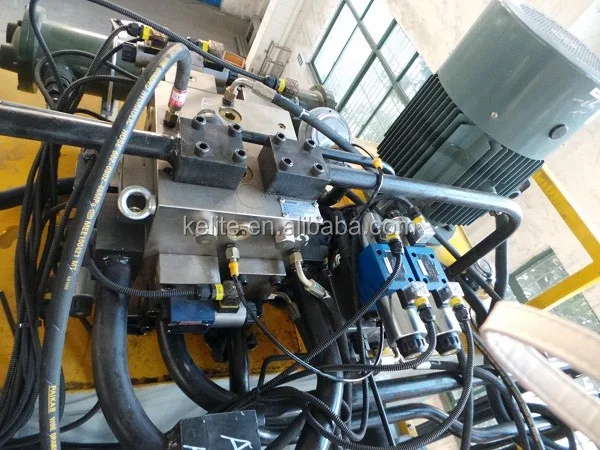

Hydraulic Station,  Rexroth Hydraulic System, Siemens Mortor, Germany Brand

Y32-500T (15)

Water Cooler, to prolong the machine's lifetime.

Auxiliary Oil Tank

Y32-500T (17)
