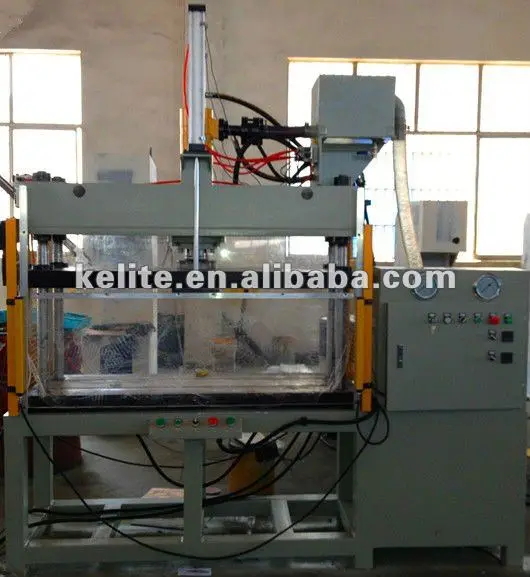

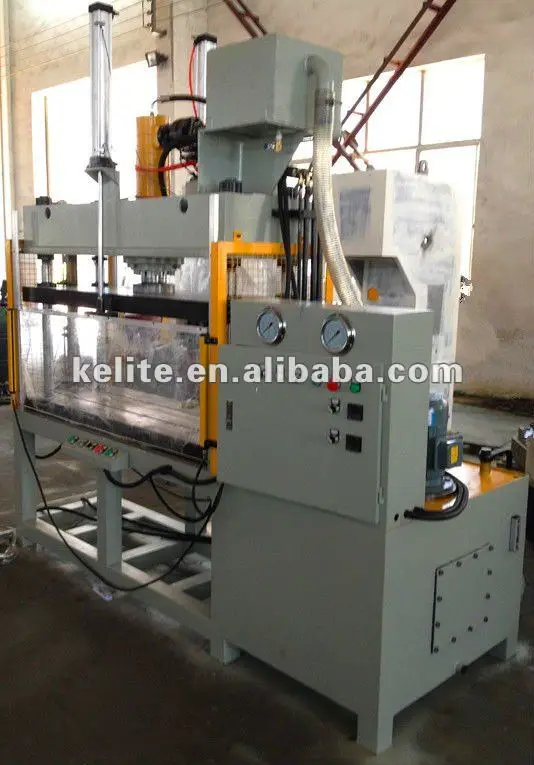

four-column high speed hydraulic press YK32-63T

FOB Reference Price:Get Latest Price
$1,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Nominal Force (kN):
630
Model Number:
YK32-63T
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Field installation, commissioning and training, Online support, Free spare parts, Video technical support, Field maintenance and repair service
Place of Origin:
Jiangsu, China
Brand Name:
KLT
Condition:
New
Certification:
CE
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Construction works
Motor Power (kw):
4
Key Selling Points:
High Productivity
Certificate:
CE, ISO
Product name:
four-column high speed hydraulic press YK32-63T
Name:
four-column high speed hydraulic press YK32-63T
Brand:
KLT
MOQ:
1 Set
CNC or Not:
CNC
Power Source:
Hydraulic
Weight (KG):
3700
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
steel pipes support base and plywood around
Port
Shanghai Port, China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated

Brief introduction:



1. YK32 series four-column high speed hydraulic press has wide generality.

2. It is suitable for the press fitting of plasticity material and powder product; the straightening of shaft components and axle sleeve parts; the press fitting of electrical components; the stretch of small plate-shaped parts; molding blanking; coining and overprinting.

3. The working speed of this equipment is 3 to 4 times faster than that of ordinary hydraulic press (fast down: 180-250mm/s, slow speed: 7-25mm/s).

4. It adopts the operation of both-hand buttons.

5. The pressure can be regulated within limits.

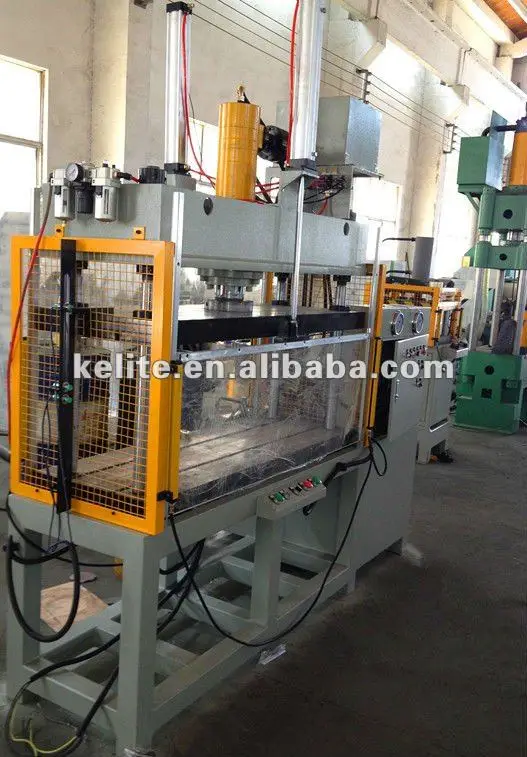

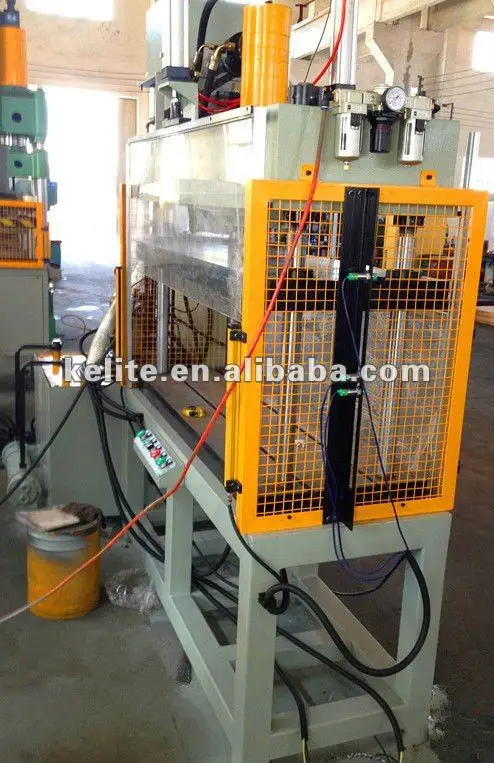

6. This machine is easy and safe to operate. It also has security light curtains to protect operators.

7. It has the features of power saving, high efficiency and speed.




Main technical parameters:



                                                       Type

       Item

Unit

63T

Nominal pressure

KN

630

Max. pressure of liquid

Mpa

18.5

Max. opening height

mm

700

Max. stroke of slider

mm

400

Downstream speed of slider

mm/s

180

Working speed of slider

mm/s

7—25

Return speed of slider

mm/s

160

Throat depth

mm

310

Table size

F.B.

mm

600

L.R.

mm

800

Operation height

mm

750

Blanking aperture

mm

100

Power of motor

KW

4

Overall dimension

F.B.

mm

1530

L.R.

mm

1600

Above floor

mm

2900

Total weight

Kg

3700

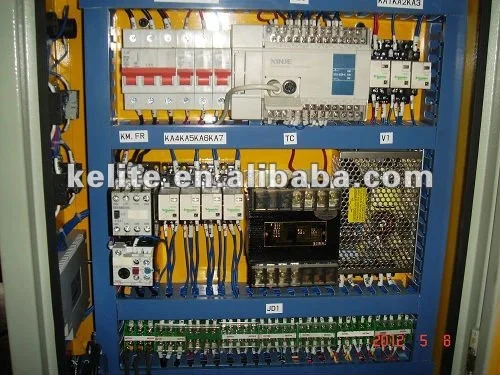

Configurations of main components:



Name

Brand

Configuration

Name

Brand

Configuration

Circuit Breaker

Schneider, France

          S

Security Light Curtain

SENSORC, China

S

Thermal Relay

Schneider, France

          S

Motor

Quality product, China

O

Intermediate Relay

Schneider, France

          S

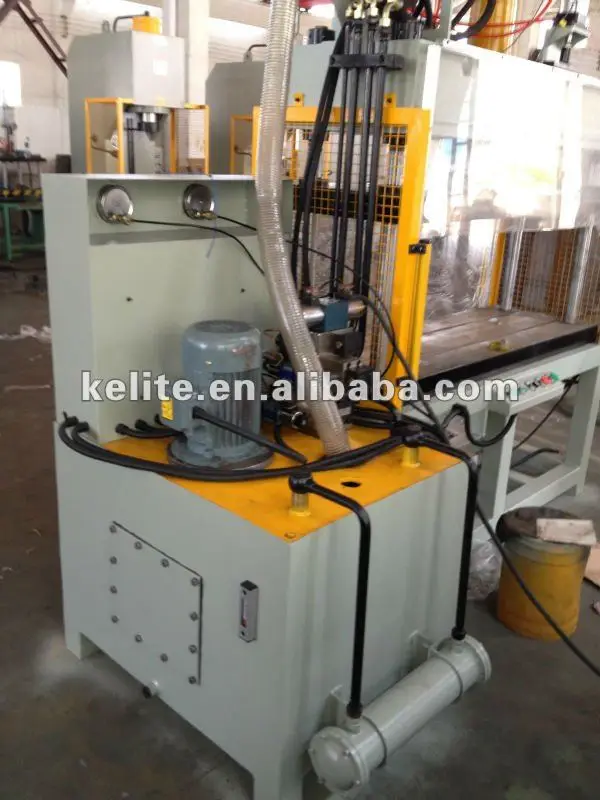

Oil Pump

Quality product, Taiwan

O

Power Source

Schneider, France

          S

Hydraulic Valve

Rexroth, Germany

S

Button

Schneider, France

          S

Sealing Element

NOK

S

Time Relay

SIEMENS, Germany

          S

PLC

MITSUBISHI, Japan

S

Transformer

Bright, Wuxi

          S

TPC

MCGS, China

S

Notes: S stands for standard configuration, and O stands for optional configuration
